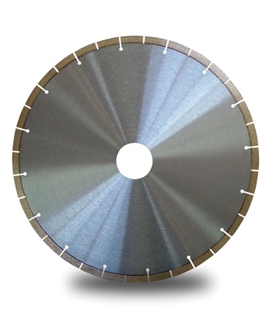

Granite Saw Blade - brazed welded
Diameter | Bore | Segment | Segment | |
mm | inch | size(mm/inch) | thickness(mm) | height(mm) |
300 | 12” | 25.4/1” | 3.0 | 10 |
350 | 14” | 25.4/1” | 3.2 | 10 |
400 | 16” | 25.4/1” | 3.6 | 10 |
450 | 18” | 25.4/1” | 3.8 | 10 |
500 | 20” | 25.4/1” | 4.0 | 10 |
600 | 24” | 25.4/1” | 4.5 | 10 |
________________________________________________________________________________________________________________________
Marble Saw Blade – brazed welded
Diameter | Bore | Segment | Segment | |
mm | inch | size(mm/inch) | thickness(mm) | height(mm) |
300 | 12” | 25.4/1” | 3.0 | 9 |
350 | 14” | 25.4/1” | 3.2 | 9 |
400 | 16” | 25.4/1” | 3.6 | 9 |
450 | 18” | 25.4/1” | 3.8 | 9 |
500 | 20” | 25.4/1” | 4.0 | 9 |
600 | 24” | 25.4/1” | 4.5 | 9 |
________________________________________________________________________________________________________________________
Tile Saw Blade – brazed welded
Diameter | Bore | Segment | Segment | |
mm | inch | size(mm/inch) | thickness(mm) | height(mm) |
105 | 4” | 20.00/0.787” | 1.5 | 7 |
110 | 4.3” | 20.00/0.787” | 1.5 | 7 |
115 | 4.5” | 22.23/0.875” | 1.5 | 7 |
125 | 5” | 22.23/0.875” | 1.5 | 7 |
150 | 6” | 22.23/0.875” | 1.6 | 7 |
180 | 7” | 22.23/0.875” | 1.6 | 7 |
200 | 8” | 22.23/0.875” | 1.6 | 7 |
230 | 9” | 22.23/0.875” | 1.6 | 7 |
250 | 10” | 25.4/1” | 1.6 | 8 |
300 | 12” | 25.4/1” | 2.2 | 8 |
