Diamond Cup Grinding Wheel
Diamond Cup Grinding Wheel
Update: 2014/12/31 10:24:28　　Click: 5773

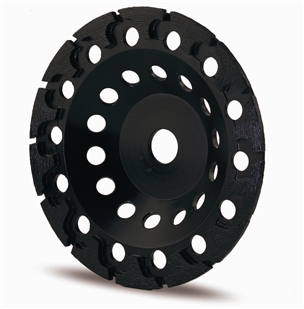

Sintered cup wheel

Features:
Sintered segmented cup wheel provides high efficiency and remarble performance
Application:
Granite, marble, concrete, masonry
Machinery:
Angle grinder
Different arbor sizes and segment specifications are available upon request

Diameter
Bore
Segment
Segment
mm
inch
size(mm/inch)
thickness(mm)
height(mm)
80
3"
22.23/ 7/8"
5
11
100
4"
22.23/ 7/8"
5
11

_____________________________________________

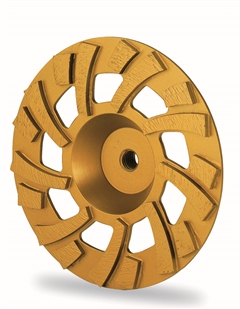

Turbo grinding wheel

Features:
The wheel is directly engineered onto the steel core. Smooth
grinding and finishing of construction material surface
Application:
Granite, marble, concrete, cured concrete, construction material
Machinery:
Angle grinder
Different arbor sizes and segment specifications are available upon request

Diameter
Bore
Segment
Segment
mm
inch
size(mm/inch)
thickness(mm)
height(mm)
105
4"
16/22.23
5/8"/7/8"
6
115
4.5"
16/22.23
5/8"/7/8"
7.5
125
5"
16/22.23
5/8"/7/8"
7.5
150
6"
16/22.23
5/8"/7/8"
8
180
7"
16/22.23
5/8"/7/8"
8

_____________________________________________

Silver brazed single row cup wheel

Features:
Silver brazed single row cup wheel is ideal for beveling, smoothing and shaping
Application:
Granite, marble, concrete products, masonry material and all types of natural stone
Machinery:
Angle grinder
Different arbor sizes and segment specifications are available upon request

Diameter
Bore
Segment
Segment
mm
inch
size(mm/inch)
width(mm)
height(mm)
NO.
105
4"
16/22.23
5/8"/7/8"
5
7
115
4.5"
16/22.23
5/8"/7/8"
5
8
125
5"
16/22.23
5/8"/7/8"
5
8
150
6"
16/22.23
5/8"/7/8"
5
8
180
7"
16/22.23
5/8"/7/8"
5
8

________________________________________________________________________________________________________________________

Silver brazed double row grinding wheel
Features:
Silver brazed double row grinding wheel is ideal for beveling, smoothing and shaping
Application:
Granite, marble, concrete products, masonry material and all types of natural stone
Machinery:
Angle grinder

Different arbor sizes and segments specifications are available upon request

Diameter
Bore
Segment
Segment
mm
inch
size(mm/inch)
width(mm)
height(mm)
NO.
105
4"
16/22.23
5/8"/7/8"
5
7
8/8
115
4.5"
16/22.23
5/8"/7/8"
5
8
9/9
125
5"
16/22.23
5/8"/7/8"
5
8
9/9
150
6"
16/22.23
5/8"/7/8"
5
8
10/10
180
7"
16/22.23
5/8"/7/8"
5
8
12/12

________________________________________________________________________________________________________________________

Silver brazed cup wheel
Features:
The design of the product are suitable for removing material fastly
Application:
Granite, marble, concrete products, masonry material and all types of natural stone
Machinery:
Angle grinder
Different arbor sizes and segment specifications are available upon request

Diameter
Bore
Segment
Segment
mm
inch
size(mm/inch)
width(mm)
height(mm)
NO.
105
4"
16/22.23
5/8"/7/8"
5
8
10
115
4.5"
16/22.23
5/8"/7/8"
5
8
18
125
5"
16/22.23
5/8"/7/8"
5
8
20
150
6"
16/22.23
5/8"/7/8"
5
8
12
180
7"
16/22.23
5/8"/7/8"
5
8
24

________________________________________________________________________________________________________________________

____________________________________________________________________________________________________________________________________________________________________________

Turbo Row Cup Wheel with Aluminum Base

Feature: For grinding concrete, granite, brick block, natural stone, with supper good.

Working speed. Suitable for angle grinder machine.

Diameter
Connector
Segment
Segment
mm
inch

thickness(mm)
width(mm)
100
4￣
M14
6
20
125
5￣
M14
6
20
